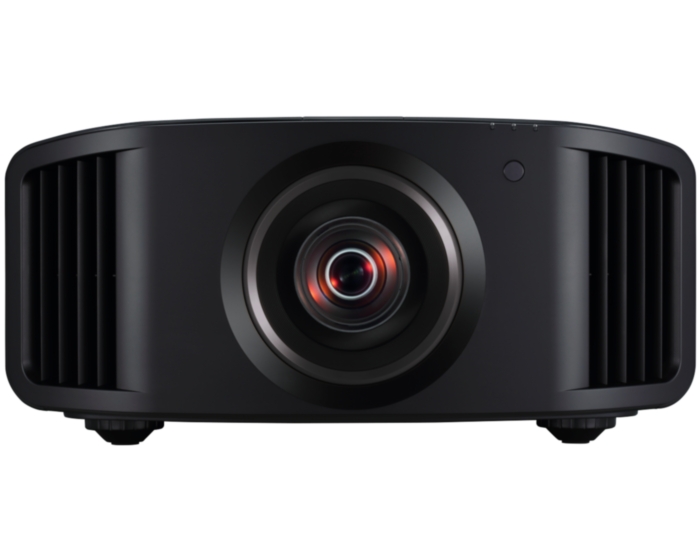

JVC DLA-NZ800 D-ILA Laser Projector - Black

✓ 3 Year Warranty included
✓ Authorised UK Dealer
✓ FREE Next Working Day Courier Service to mainland UK

Gen3 0.69-inch Native 4K D-ILA Devices (x3) / 100,000:1 native contrast / BLU-Escent Laser 2,700-lumen / Gen2 "8K/e-shiftX" / Gen2 Frame Adapt HDR with Deeper Blacks / New Picture mode “Vivid”

£17,499.00

Details

Immersive Visual Brilliance with Precision HDR and 8K Technology

The JVC DLA-NZ800 projector delivers an exceptional home cinema experience with its 2nd Generation 8K/e-shiftX technology and 3rd Generation 0.69-inch 4K D-ILA device, reproducing ultra-detailed 8K image quality. Its BLU-Escent laser light source and 2,700 lm brightness ensure vibrant, lifelike visuals, while the high-grade 65mm all-glass lens enhances clarity. A native contrast ratio of 100,000:1 and dynamic contrast of ∞:1 create rich depth and realism. With dual HDMI 2.1 ports (48Gbps) supporting 8K60P/4K120P signals, plus advanced HDR features like HDR10+, Frame Adapt HDR, Theater Optimizer, and Auto Tone Mapping, it delivers scene-by-scene tone mapping that mirrors the filmmaker’s intent. FILMMAKER MODE™, Clear Motion Drive, ISFccc, and a wide color gamut exceeding DCI-P3 ensure cinema-grade color and motion. Smart features like 6-axis color management, auto-calibration, low latency mode, vivid SDR picture mode, and 3D support round out its professional-grade performance in any environment.

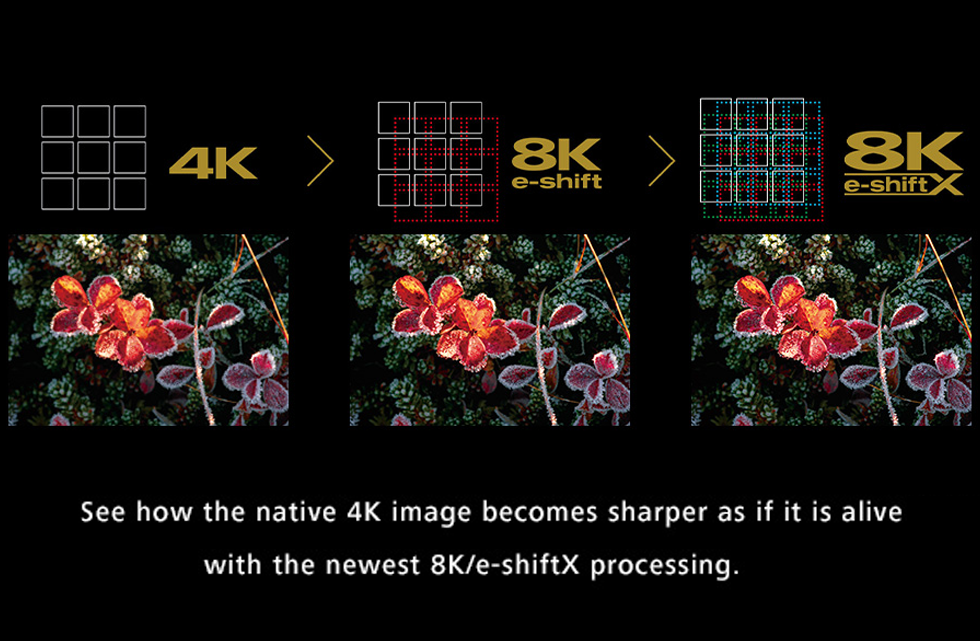

Gen2 8K/e-shiftX Realizes Remarkable 8K Resolution Display

JVC’s proprietary 8K/e-shiftX, which is a combination of “e-shift technology” – a high-resolution display technology that doubles the resolution by shifting a pixel by 0.5 pixels in four directions up, down, left, and right – and “0.69-inch native 4K D-ILA devices” has made significant progress as the second generation 8K/e-shiftX. The latest version features JVC's newest 8K scaling engine that drastically improves the projector’s sharpness and detail across a wide range of content, including 8K (8192 x 4320 pixels) sources.

8K60p Input for Ultra-high Res 8K Content. 4K120p Input for Games and More.

Newly developed Live Color Enhancer technology selectively expands tonal range for vivid HDR images without unnatural oversaturation, whether you’re watching in daylight or darkened rooms.

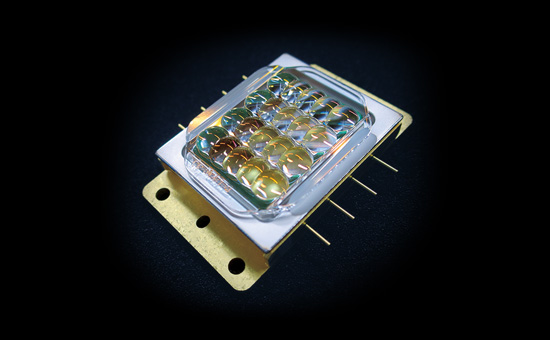

Exceptional Brightness and Longevity with BLU-Escent Laser

Another essential aspect of projectors lies in their light source. The DLA-NZ series adopts JVC’s original laser light source “BLU-Escent Laser” to achieve exceptional peak brightness of 3,300 lumens on the DLA-NZ900 and 2,700 lumens on the DLA-NZ800, both with longevity of 20,000 hours. When compared to the first-generation laser projector*, the projectors’ brightness per effective wattage has improved 1.9-fold, which, as a result, also contributes to saving power through improved power efficiency.

*When compared to the DLA-Z1

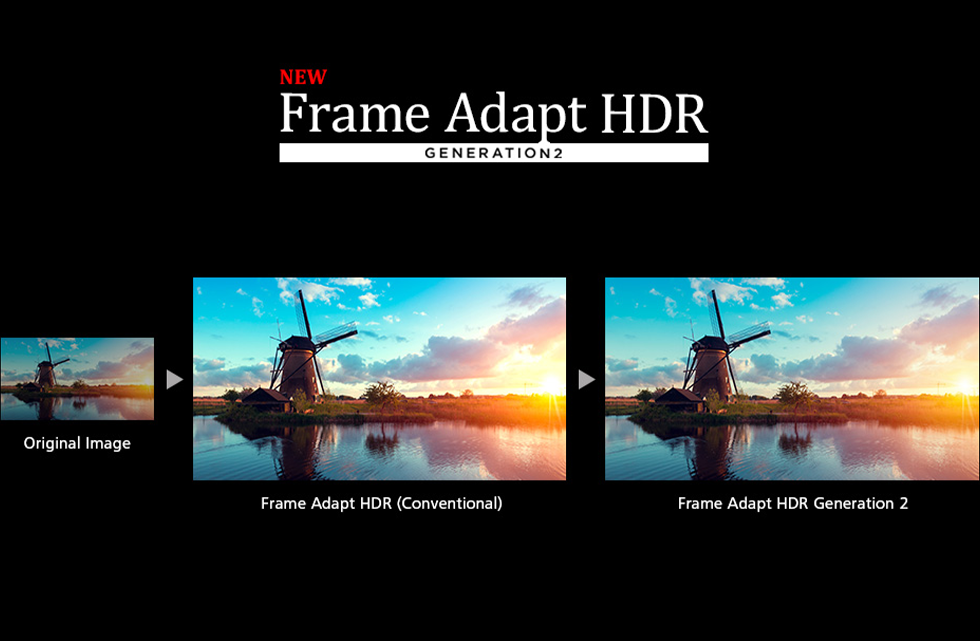

Gen2 Frame Adapt HDR Function for Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

HDR Drastically Improves Expressive Power of Images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide color gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

Unparalleled Black Level and High Luminance Deliver Images Brimming with Reality

The new D-ILA projector boasts the industry’s highest native contrast with the Gen3 0.69-inch 4K D-ILA device and wire-grid optical engine, however in combination with the dynamic laser light control, which analyzes the incoming video signal to automatically control the amount of outgoing laser light, a dynamic contrast level of ∞:1 (infinity to 1) can be achieved in scenes with pitch blackness by completely shutting off the light source. As a result, images brimming with reality that are closer to human perception can be produced. Likewise, the new algorithm enables laser control with greater precision to meet the user’s preferences.

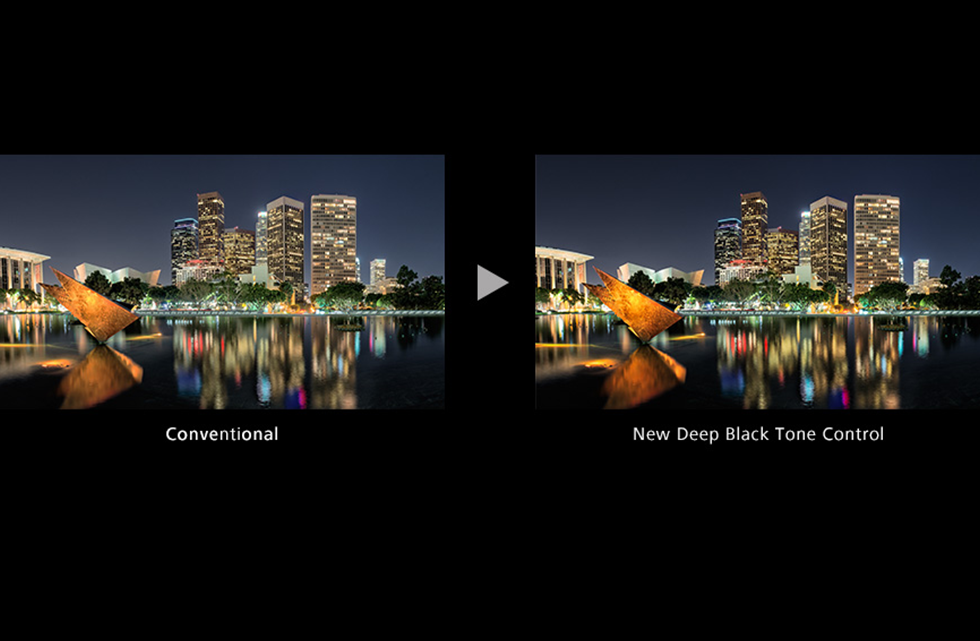

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

More Information

More Information
Features	Device D-ILA Technology Chip Type: 3rd Generation 0.69-inch 4K D-ILA device Native Resolution: 4096 x 2160 Number Of Chips: 3 8K/e-shiftX: Yes Display Resolution: 8192 x 4320 Light Source Laser: Yes Type: BLU-Escent Laser Diode Life Time (Standard Mode): 20000 hours Picture Brightness: 2700 lm Dynamic Contrast: ∞ : 1 Native Contrast: 100000 : 1 Dynamic Light Power control: Yes Modes: Mode 1 (gentle), Mode 2 (strong), Off Manual Aperture: Yes Range: -15 (stops down) to 0 (opens up) DCI-P3 Color Gamut: Yes 100% REC 709: Yes Color Bit Depth: 12 bit ISFccc Certification: Yes HDR HDR10, HDR10+, Frame Adapt HDR, Theater Optimizer, HLG Auto Tone Mapping: Yes Mastering Info Display: MaxCLL and MaxFALL HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR Deep Black Tone Control: Yes Lens Zoom: 2 x Throw Ratio: 1.43-2.92:1 Diameter: 65 mm Material: All-glass Build: 17-element, 15-group in full aluminium lens barrel Lens Shift: Yes (±34% Horizontal, ±80% Vertical) Motorized: Zoom, Shift, Focus Display Size: 60 - 200 inch Memory Function: Yes (10 user presets) Lens Cover: Yes HDMI Inputs: 2x HDMI (48 Gbps, HDCP 2.3) Supported Signals: 8K60P, 4K120P, 4K60P Video Signal Range: 480p to 7680x4320p 60/50/30/25/24 PC Signal Range: VGA to WQHD (60/120) Input Level Adjustment: Auto / Standard / Enhanced / Super White Color Space: Auto / YCbCr444 / YCbCr422 / RGB EDID Modes: A and B Connections Trigger Out (Mini-Jack 3.5mm, DC 12V / 100mA) 3D Synchro (Mini DIN 3-pin) LAN (RJ45), RS-232 (D-sub 9-pin), USB (Type A for firmware) 3D 3D Capability: Yes 3D Versions: Frame Packing, Side-by-Side, Top & Bottom Optional Accessories: PK-EM2 Emitter, PK-AG3 Glasses Picture Settings Modes: Natural, Cinema, Film, Vivid, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes Color Temps: Xenon 1, Xenon 2, 5500K–9300K, High Bright, HDR10+, HDR10, HLG, Custom 1–2 Gamma: HDR (Auto/PQ/HLG), 2.2, 2.4, 2.6, Cinema, Film, Pana_PQ, 3 Custom modes Color Management: 6-Axis CMS Other: MPC, Filmmaker Mode, Low Latency Mode, Clear Motion Drive, Motion Enhance Auto Calibration: Yes (Optional Probe required) Installation Installation Mode: 8 modes Included Settings: Lens Control, Pixel Adjustment, Mask, Anamorphic On/Off, Screen Adjust, Installation Style, Keystone, Aspect Anamorphic Modes: A, B, C, D Control4 SDDP: Yes Power & Environment Power: AC100-240V, 50/60Hz Power Use: 440W (In Use), 0.20W (Eco Standby) Network Standby: 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) Fan Noise: 24 dB Eco Mode / Timer: Yes Operating Temp: 5°C to 35°C Humidity: 20% to 80% Installation Angle: ±5° Horizontal / ±10° Vertical Installation Height: Below 2,000 m In the Box Remote Control (RM-MH27), Quick Guide, Power Cord, 2 x AAA Batteries Dimensions & Weight Product Dimensions: 500 x 234 x 505 mm Weight: 23.1 Kg Package Dimensions: 640 x 415 x 665 mm Package Weight: 28.5 Kg General Note: Simulated pictures. Weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
