| Features |
Device:
D-ILA Technology: Yes
Chip Type: 3rd Generation 0.69-inch 4K D-ILA device
Native Resolution: 4096 x 2160
Number Of Chips: 3
Display Resolution: 4096 x 2160
Light Source:
Laser: Yes
Type: BLU-Escent Laser Diode
Life Time (Standard Mode): 20000 hours
Picture:
Brightness: 2300 lm
Dynamic Contrast: ∞ : 1
Native Contrast: 80000 : 1
Dynamic Light Power Control: Yes (Low, High, Balance, Off)
Manual Aperture: Yes (-15 to 0)
DCI-P3 Color Gamut: Yes
100% REC 709: Yes
Color Bit Depth: 12 bit
ISFccc Certification: Yes
HDR:
HDR10: Yes
HDR10+: Yes
Frame Adapt HDR: Yes
HLG: Yes
Auto Tone Mapping: Yes
Mastering Info Display: MaxCLL, MaxFALL, DML
HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control: Yes
Lens:
Zoom: 1.6x
Throw Ratio: 1.34 - 2.14 (16:9), 1.26 - 2.01 (17.9)
Diameter: 80 mm

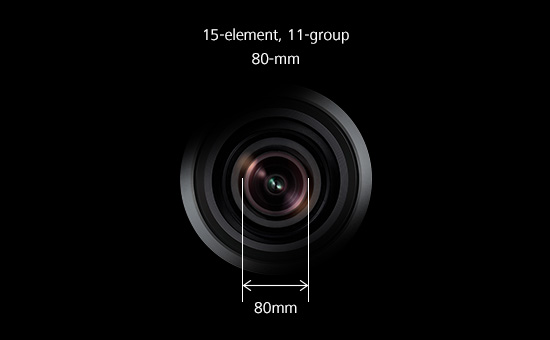

Build: 15-element, 11-group
Lens Shift: Horizontal ±28%, Vertical ±70%
Motorized Zoom / Shift / Focus: Yes
Projection Display Size: 60 - 200 inch
Memory Function: Yes (5 presets)
Lens Cover: Yes
HDMI:
HDMI: Yes (2 inputs)
Data Rate: 32 Gbps
HDCP Version: 2.3
4K60P Signal Input: Yes
Video Signal Range: 480p to 4096x2160p (24–60Hz)
PC Signal Range: VGA to 2560x1440
Input Level Adjustment: Auto / Standard / Enhanced / Super White
Color Space Range: Auto / YCbCr444 / YCbCr422 / RGB
EDID Modes: Standard, Option1, Option2
Connections:
LAN: Yes (RJ45)
USB (Type A): Yes (Firmware update or backup)
Power, Service: Yes
Picture Settings:
Picture Modes: Natural, Cinema, Filmmaker, Vivid, isf(Day), isf(Night), Frame Adapt HDR, HDR10, HLG, 4 User Modes
Color Temperatures: Xenon 1/2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1/2
Gamma Processing Depth: 12 bit
Gamma Adjust: HDR (Auto/PQ/HLG), 2.2, 2.4, 2.6, Cinema 1/2, Vivid, 3 Custom Modes
Color Management: 6-Axis CMS
MPC, Filmmaker Mode, Auto Calibration: Yes
Optional Probe: Required
Installation:
Installation Mode: Yes (5 Modes)
Included Settings: Lens Control, Pixel Adjustment, Mask, Anamorphic, Screen Adjust, Installation Style, Keystone, Aspect
Anamorphic Modes: 4 Modes (A, B, C, D)
Control4 SDDP: Yes
Power & Environment:
Power Requirement: AC100-240V, 50/60Hz
Power Consumption: 280W
Standby: 0.25W (Eco-mode)
Network Standby: 1.40W (LAN)
Switchover Time: Approx. 15 min
Fan Noise: 23 dB
Eco Mode, Standby Timer: Yes
Operating Temperature: 5°C to 35°C
Operating Humidity: 20% to 80%
Installation Angle: Horizontal ±10°, Vertical ±10°
Installation Height: Below 2,000 m
In the Box:
Remote Control: Yes (RM-MH27)
Quick Guide: Yes
Power Cord: Yes
Batteries: Yes (2 x AAA)
Dimensions & Weight:
Product Dimensions (WxHxD): 450 x 180 x 479 mm
Product Weight: 15.2 Kg
Package Dimensions: 585 x 361 x 600 mm
Package Weight: 18.9 Kg
General Note:
Simulated pictures. The values for weight and dimensions are approximate. E.&O.E. Design and specifications subject to change without notice.
|
