LEAK Sandwich 150 Loudspeakers - Walnut

A major loudspeaker invention

Throughout the history of broadcasting and recording, certain exceptional developments have become milstones in the progress of sound reproduction.

One such milestone was the world’s very first low distortion amplifier – the famous original Leak Point One, in 1945.

Another was the pioneering major breakthrough with the invention of the fantastically rigid Leak sandwich cone diaphragm – which was demonstrably of great strength and many times stiffer than all conventional forms of cone, of its time.

Axial pressure response of Sandwich 150 Loudspeaker

To understand the impact of this innovation, one must remember that to obtain low distortion, the movement of a loudspeaker diaphragm, or cone, should follow as accurately as possible the waveform of the signals applied to its voice coil.

This results in significantly larger areas of the cone vibrating in motion, uncontrolled by the voice coil.

These uncontrolled emotions produce transit “hangover”, amplitude distortion (peaks and troughs in the frequency response) and intermodulation distortion (lack of clarity of spurious tones).

The Evolution of the Sandwich Cone: Engineering Excellence from 1961 to Today

Originally presented in 1961, the Sandwich used engineering and design principles applied to airframe construction.

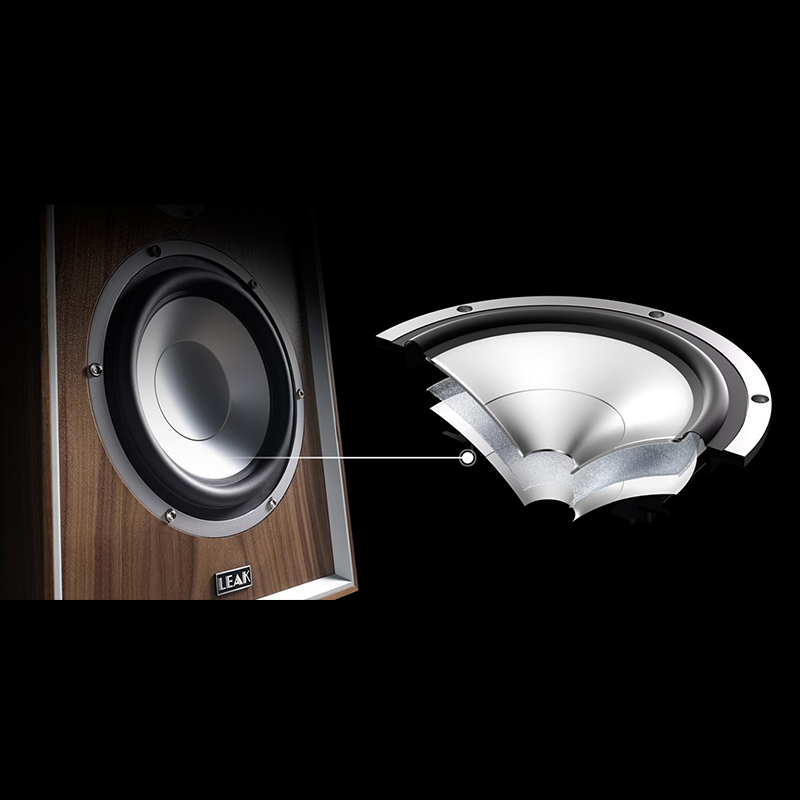

Now, reintroduced and re-engineered with modern-day learnings, the new Leak Sandwich cone comprises of a stiff aluminium skin for the outer surfaces (where the stresses are greatest) bonded to a thick core of a polymethacrylimide (PMI) based structural foam, often used aerospace and the automotive industries.

This applied, precision-engineered use of the most suitable materials in optimum proportions and dispositions gives immense rigidity.

This means the Leak Sandwich cone reproduces the signal applied to the voice coil, totally free from mechanical break-up and its associated distortions. The result is a remarkably smooth frequency response, free from violent peaks or troughs over a very broad frequency range, indicative of an excellent, transient response.

The Unseen Power of Speaker Cabinets: Advancements in Acoustic Design

It is not often sufficiently realised how profound the influence of the loudspeaker housing (the cabinet) is on the overall acoustic performance.

Its design requires a great degree of electroacoustic knowledge as a design of the motor units themselves.

The new Leak Sandwich cabinet benefits from 60 years of technological development since the original.

The structure consists of a composition of MDF and composite board, thus creating a second ‘sandwich’ reference, with the boards layered for optimum cabinet strength.

While the new cabinet fuses intelligent bracing with this ‘sandwich’ of materials, it also maintains a specific front-rear bracing, with the distinct, visible countersunk screw on the rear – a famous trait of the original.

The Perfect Fusion of Technology and Design: Introducing the New Leak Sandwich Loudspeaker Models

The technology found within Leak audio devices presents science and innovation in abundance, yet the industrial design often draws favourable attention.

Just like the warmly received Leak Stereo 130 and 230 integrated amplifier models, the new Leak Sandwich 150 and 250 loudspeaker models maintain the understated, classic Leak styling. Finished in a sumptuous walnut, real-wood veneer, the cabinet is decorated with an aluminium trim insert matched and finished to the same exemplary standards of the driver trims and cone materials.

The decorative grille cloth is purpose chosen to match the classic Leak styling with a specification for maximum acoustic transparency.

A keen eye will also notice that the new Leak Sandwich 150 and 250 are supplied in perfectly matched pairs with a ‘handed’ array presentation.

Much more than continued industrial design traits, the meticulous placement of each driver is considered to the nth degree, thus enabling a projection of a truly precise stereo soundstage.

Innovative High-Frequency Development in the Leak Sandwich 150 and 250

With the Leak Sandwich 150 and 250, the high-frequency driver has been developed, incorporating a rear chamber damped to absorb the output from the back of the dome.

This innovation not only isolates the HF unit from the rest of the loudspeaker, it has the added benefit of reducing the resonant frequency of the treble unit.

Taking the resonant frequency below the crossover region means the audible spectrum of the bass, mid and high frequencies can be sewn together with an added dimension of detail and harmonics, eliminating the requirement to harshly adjust the definition of the high-frequencies.

And that very sewing is conducted by a crossover of the highest order, developed over thousands of hours of listening, not just simulation as is the tendency in modern loudspeaker design.

A 2-Way Standmount Loudspeaker

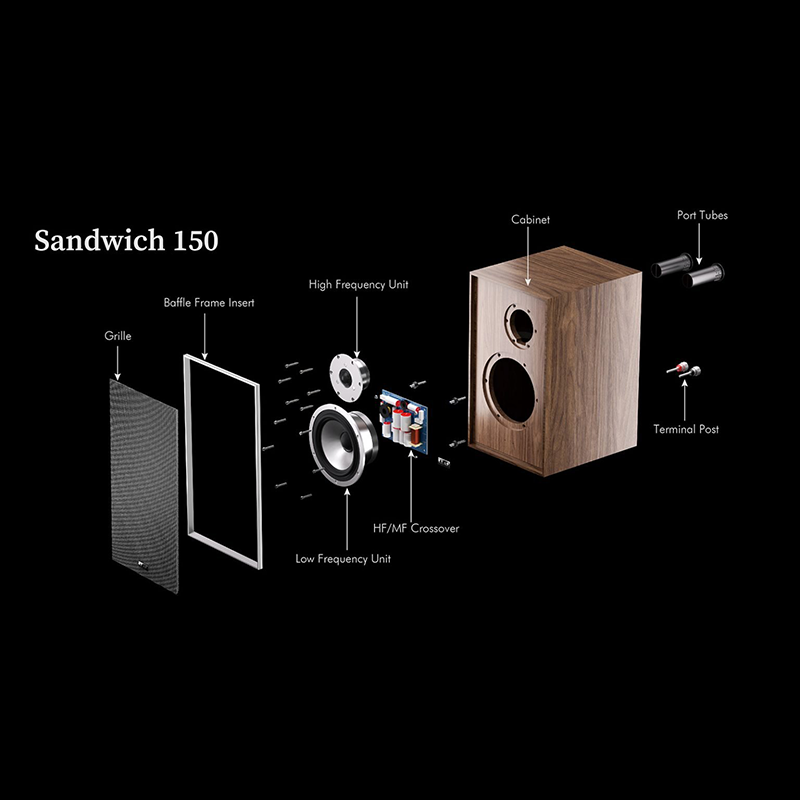

The Leak Sandwich 150 comes in the format of a 2-way standmount loudspeaker with a combination of 6.5” (170mm) low-frequency ‘Sandwich’ driver and a 1.2” (30mm) coated textile dome high-frequency driver.
