4 x 3" BC3V 100V Wall Speaker Package + Adastra UM30 BT / USB Media Amplifier + Wiring in Black

In Stock

4 x 3" BC3V 100V Wall Speaker Package + Adastra UM30 BT / USB Media Amplifier + Wiring in Black

£349.99 £368.95

✓ 1 Year Warranty included

✓ Authorised UK Dealer

✓ FREE 2 - 3 Working Day Delivery

Compact 100V Wall speaker hanging / mount system - ideal for background music and announcements in areas with low ceilings. Available in both black and white finishes. Comes complete with 4X 3" easy fit, wall mounted speakers. UM30 Media Amplifier: 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Bundle also comes with 100m of speaker cabling.

Compact 100V, Wall mount speaker system - ideal for background music and announcements in areas with low ceilings. Perfect for bars, clubs, restaurants, hotels, conference halls, lounges and places of worship etc.

Bundle includes:

UHM30 Media Amplifier

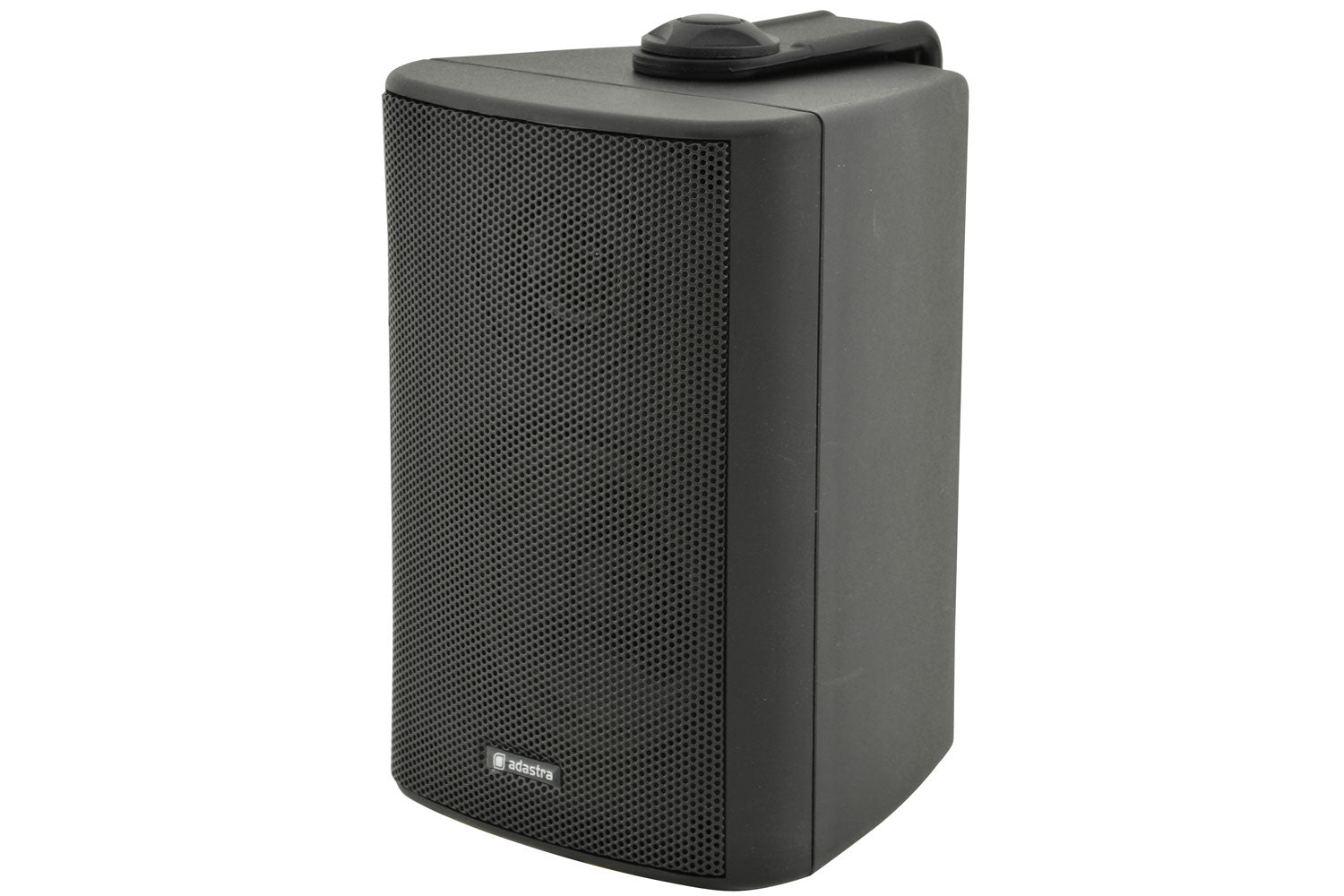

4X 3" Easy fit BC3V Wall hanging / mount speakers - Black

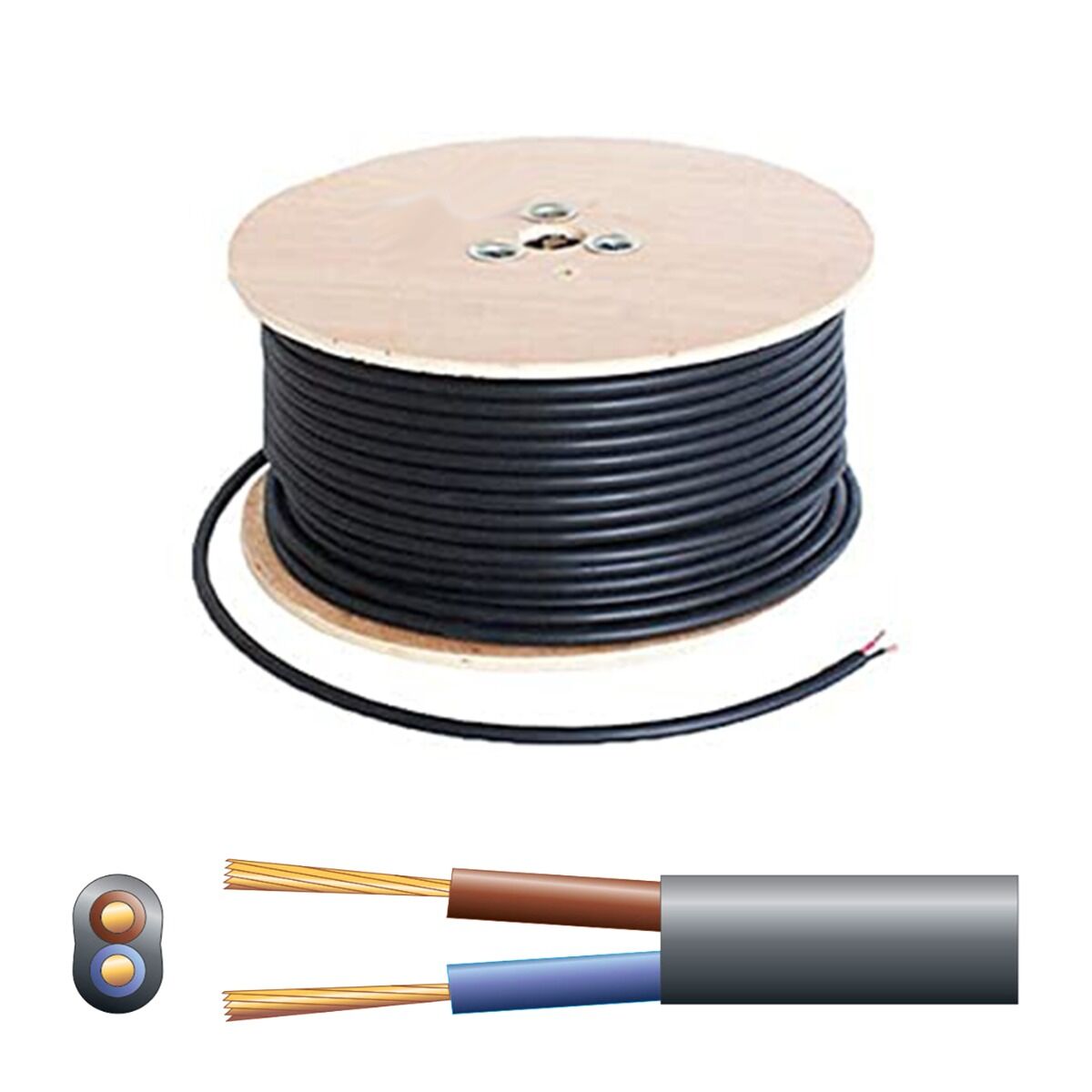

100m of speaker cabling

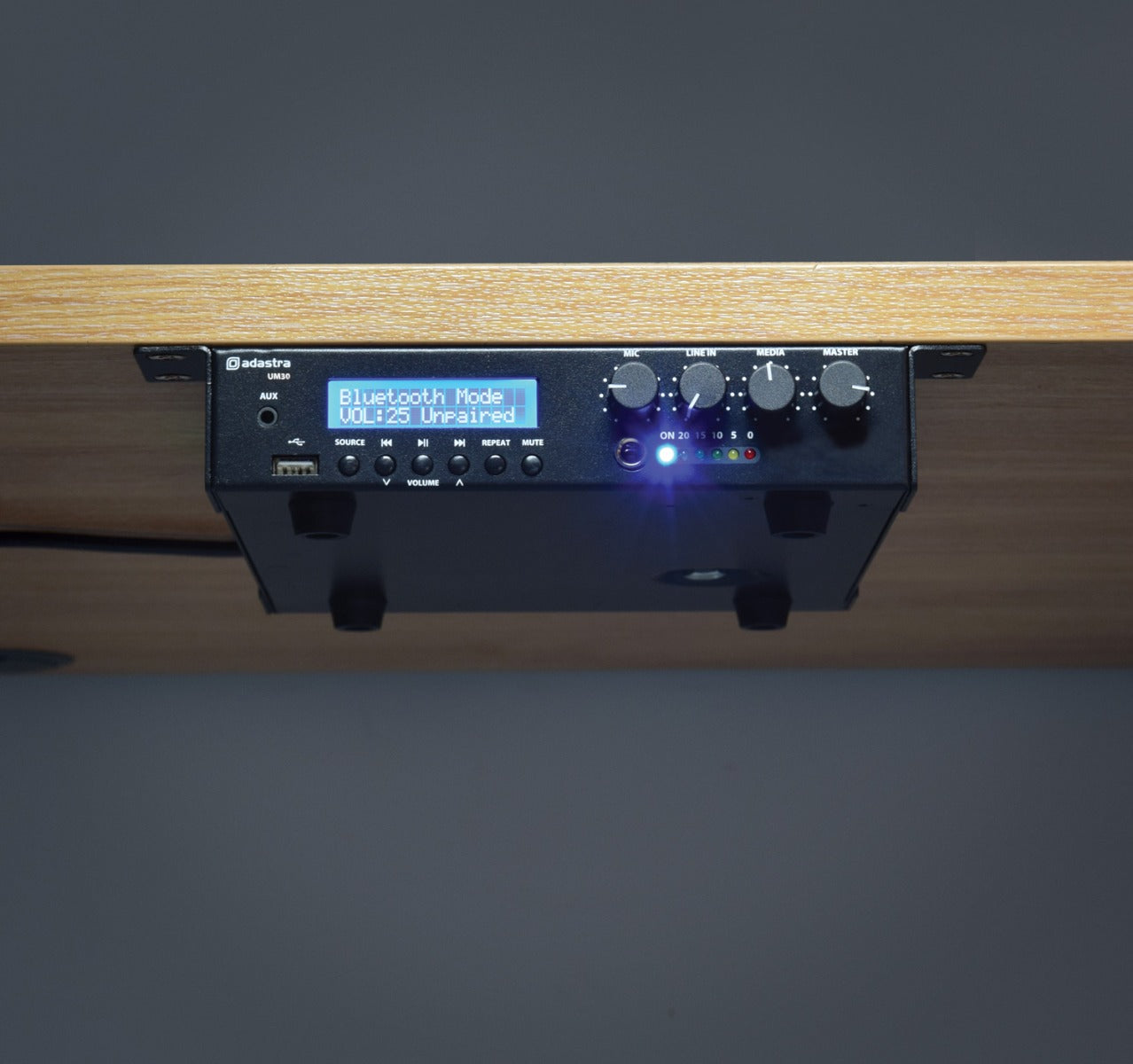

UHM30 Media Amplifier: 100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume.

Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

Amplifier Features:

Ultra compact form factor
Efficient class D amplifier design
Internal USB/FM/BT audio player
100V line or 8 Ohms operation

Speaker Features:

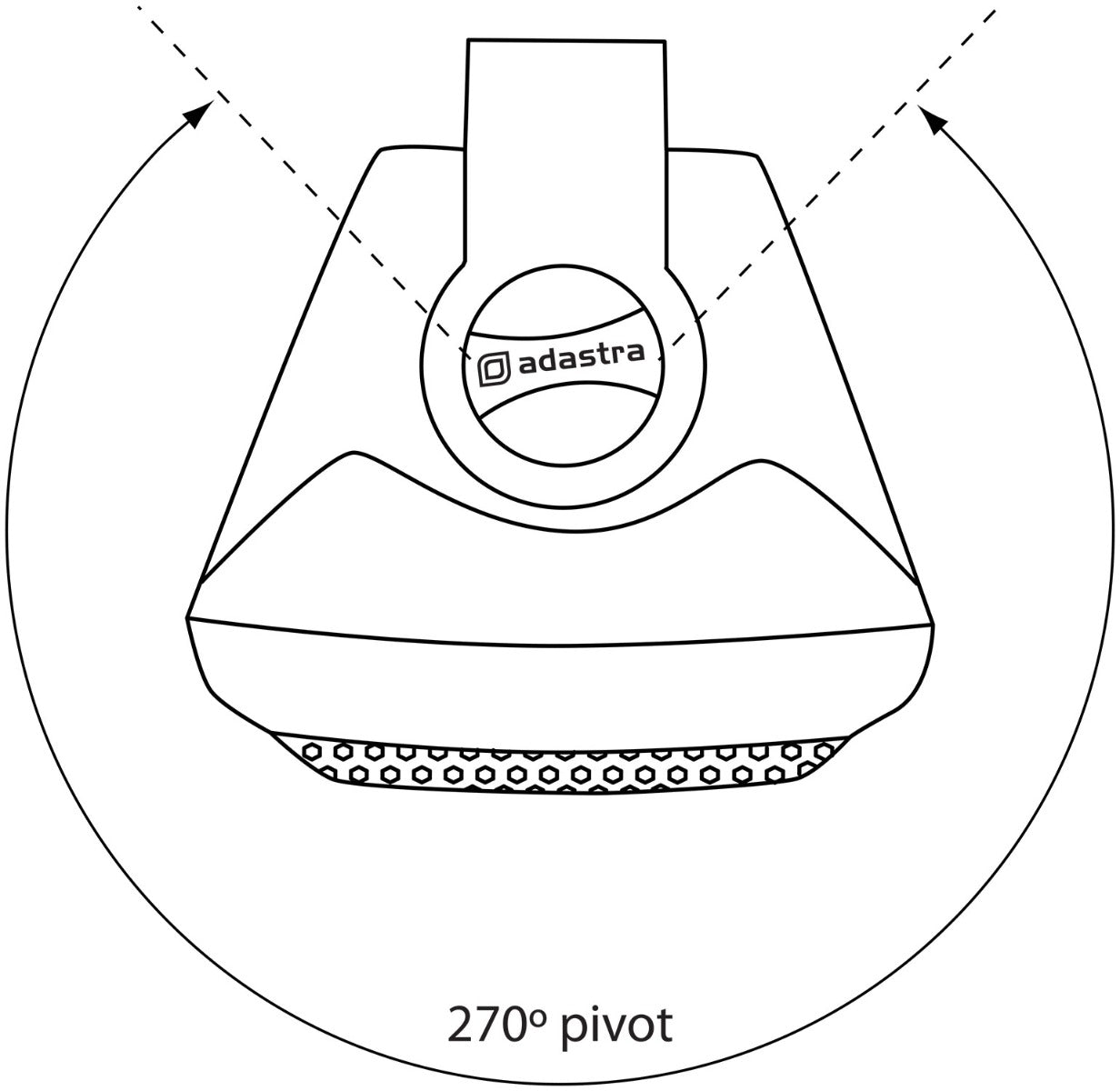

A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications.

2 way speaker system with crossover network
Rotary selector switch for 100V line tappings or 8 Ohms operation
Wall mounting bracket supplied
Alternative M6 threaded mounting points
Spring terminal connection
Supplied singly
Spring terminals

Amplifier Specifications:

Power supply: 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction: Class D + transformer output
Audio source: Internal USB/FM/BT player
Inputs:1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output: 2 x RCA (mono)
Speaker outputs: Screw terminals - 100V / 8 Ohms / Com
DC power: 24Vdc screw terminals

Mute24V relay contacts
THD<0.4% @ 1kHz
Input impedance: 1k Ohms (mic/line)
Input sensitivity-10dB (line), -45dB (mic)
SNR80dB (line), 75dB (mic)
Frequency response: 100Hz - 18kHz

Speaker Specifications:

Model	BC3V-W
Colour	Black
Woofer	75mmØ (3'') reinforced paper cone
Tweeter	12mm (0.5'') polymer HF driver
Frequency response	120Hz - 20kHz
Power max. : 8 Ohms	60W
Power rms : 8 Ohms	30W
SPL @ 1W/1m	87dB
Tappings	6W, 3W, 1.5W + 8 Ohms
Impedance : 100V	1.6k, 3.3k, 6.6k Ohms
Dimensions	106 x 153 x 98mm
Weight	900g

100V line speakers

Name: 4 x 3" BC3V 100V Wall Speaker Package + Adastra UM30 BT / USB Media Amplifier + Wiring in Black
Brand: Adastra
SKU: 953.173+4X952.711+804.362
Price: 349.99 GBP
Availability: InStock

For many applications, it is necessary to drive many speakers with a single amplifier, giving greater coverage to multiple rooms or over a given area. Constant voltage systems (usually 100V line) employ a transformer in the amplifier to convert the output to high impedance and a corresponding transformer in each speaker to tap of the required power from the amplifier.

Theoretically, this allows a large number of speakers to be driven by one amplifier, so long as the overall power being tapped by the speakers is within the amplifier’s output capacity (usually 90% of the amplifier’s maximum rated output).

Standard 100V line set-up

Total tapped power: 80W

In addition, the transformers in each speaker may have tappings at different points along the primary coil, which effectively draw different Wattages from the amplifier. For example, a 10W speaker may also have settings for 5W or 2.5W.

The speaker output may also be varied using remote volume controls, known as attenuators, but these should be considered to be at their maximum volume output when choosing an amplifier to drive the speakers.

100V line set-up with multiple tappings

Wired in parallel and tapped to 90% of the amplfiers max. power output

If more speakers are required beyond 90% of the 100V amplifier’s maximum output, a slave amplifier may be employed to drive these.

The slave amplifier is simply linked from the line output of the main amplifier, to which another series of speakers are then linked to, in the same way the speaker are from the main amplifier.

Extended 100V line set-up

Main 4 speaker system with additional 4 speaker set and slave amplifier.

953.173 + 4X 952.711 + 804.362
